Paper Slitting Machine Image Gallery

Jumbo paper slitting machine overview

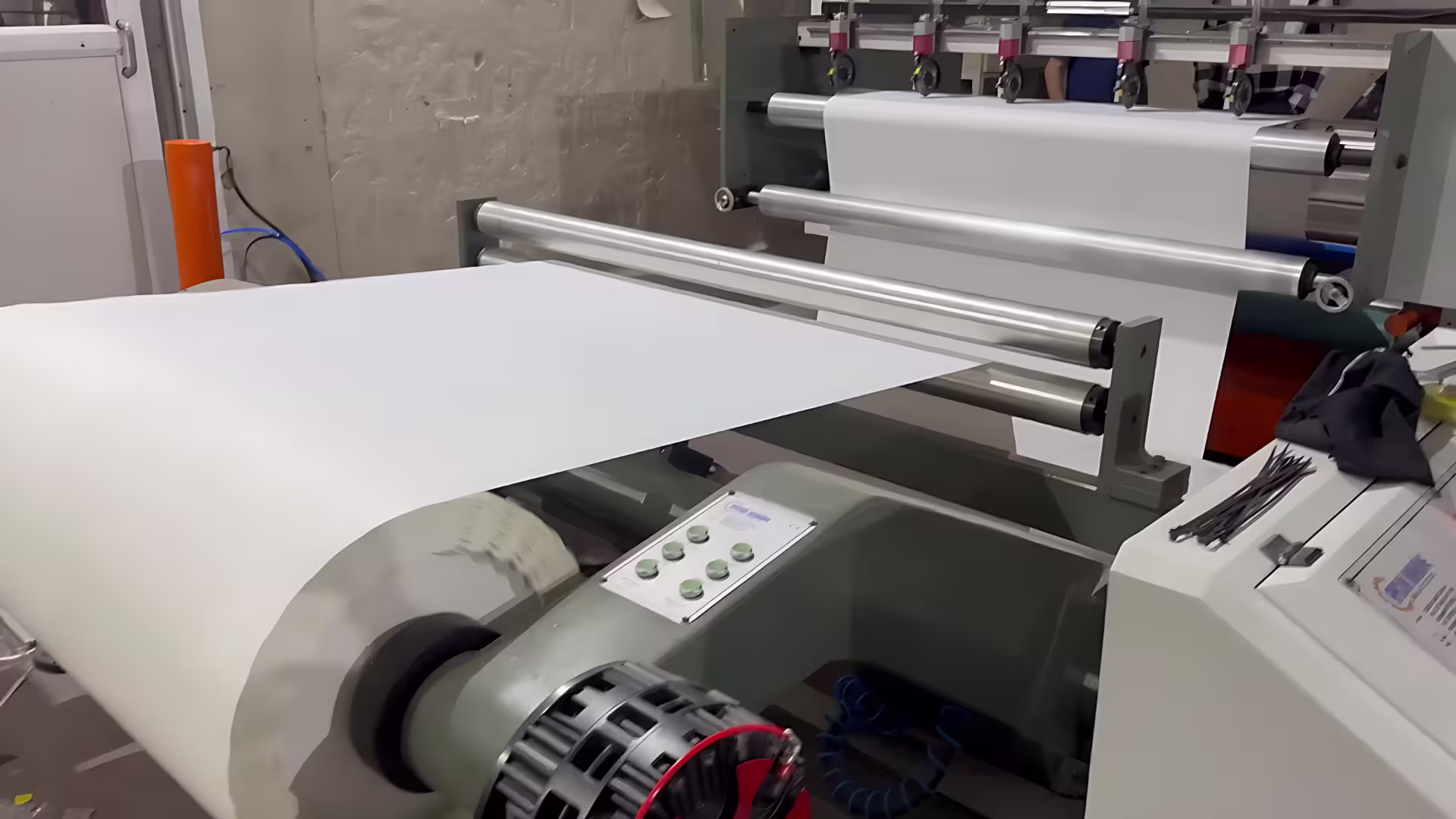

Jumbo paper slitting machine unwinding unit
Jumbo paper slitting machine slitting unit
Jumbo paper slitting machine slitting unit - 2

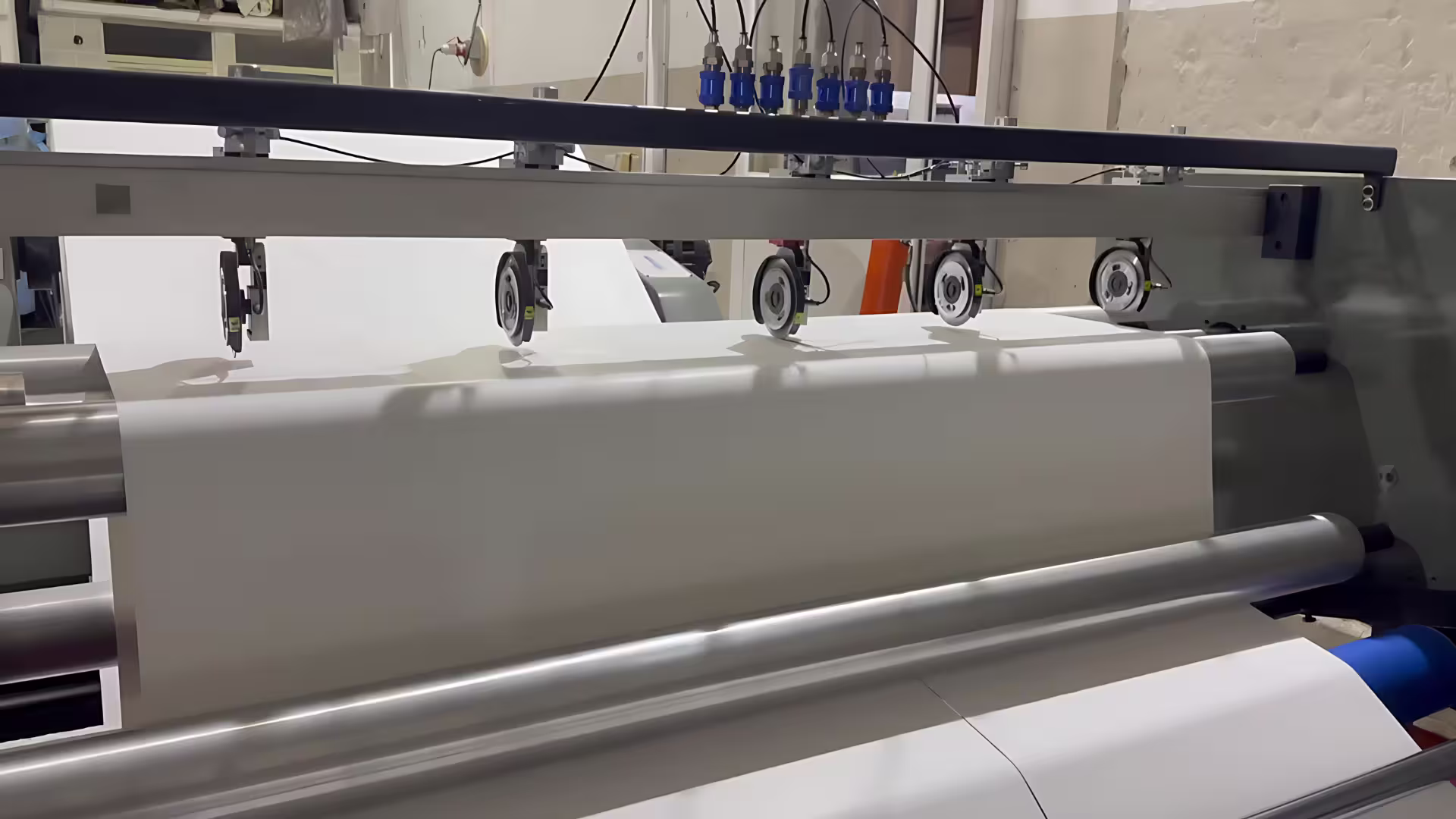

Jumbo paper slitting machine slitting unit - 3
Jumbo paper slitting machine rewinding unit
Jumbo paper slitting machine rewinding unit - 2
Touchscreen display of jumbo paper slitting machine
Scoop of jumbo paper slitting machine

Paper Slitting MachineJumbo

Astroslit – Paper Slitting Machine is a precision-engineered solution designed to slit large rolls of paper into narrower widths with high-precision and speed. Ideal for applications in the printing, packaging, label, and paper converting industries, it handles a wide range of materials including paper, film, and foils. Astroslit ensures clean cuts, high productivity, and reliable performance for demanding production environments.
  • Feather icon for high speedHigh Speed
  • Ruler icon for precision cuttingPrecision Cutting
  • Science icon for smart automationSmart Automation

Industries Served

  • Printing Industry

    Ideal for sheet-fed printing presses, where precise paper sizes are essential for high-quality prints.

  • Packaging Industry

    Used to cut paper, cardboard, or other materials into specific sizes for packaging boxes or protective wraps.

  • Paper Converting

    Ideal for paper converters who require precise cutting of paper into specific dimensions for subsequent processing or production stages.

Key Features

  • Speed

    300 m/min.

  • Slitting Precision

    ± 0.5 mm

  • Multilingual Touchscreen Display

    EN DE TR RU

  • Automatic Hydraulic Shaftless Unwind Stand

    The unwind stand is equipped with an advanced hydraulic lifting system that ensures smooth and easy roll lifting and loading. The hydraulic mechanism offers precise control over roll positioning, minimizing manual labor.

    Automatic hydraulic shaftless unwind stand

  • Pneumatic Air-Cooled Brakes

    It uses compressed air to activate and deactivate the braking system in synchronization with the automatic tensioning system, regulating the pressure for smooth deceleration. The air-cooled design prevents overheating during prolonged use, ensuring consistent performance and long lifespan.

    Pneumatic air-cooled brakes

  • Automatic Tension Control

    Our Automatic Tension Control system works seamlessly with the brake system to maintain consistent tension during the paper sheeting process. This ensures precise cutting, reduces waste, and boosts productivity by improving overall efficiency and quality in each operation.

    Automatic tension control

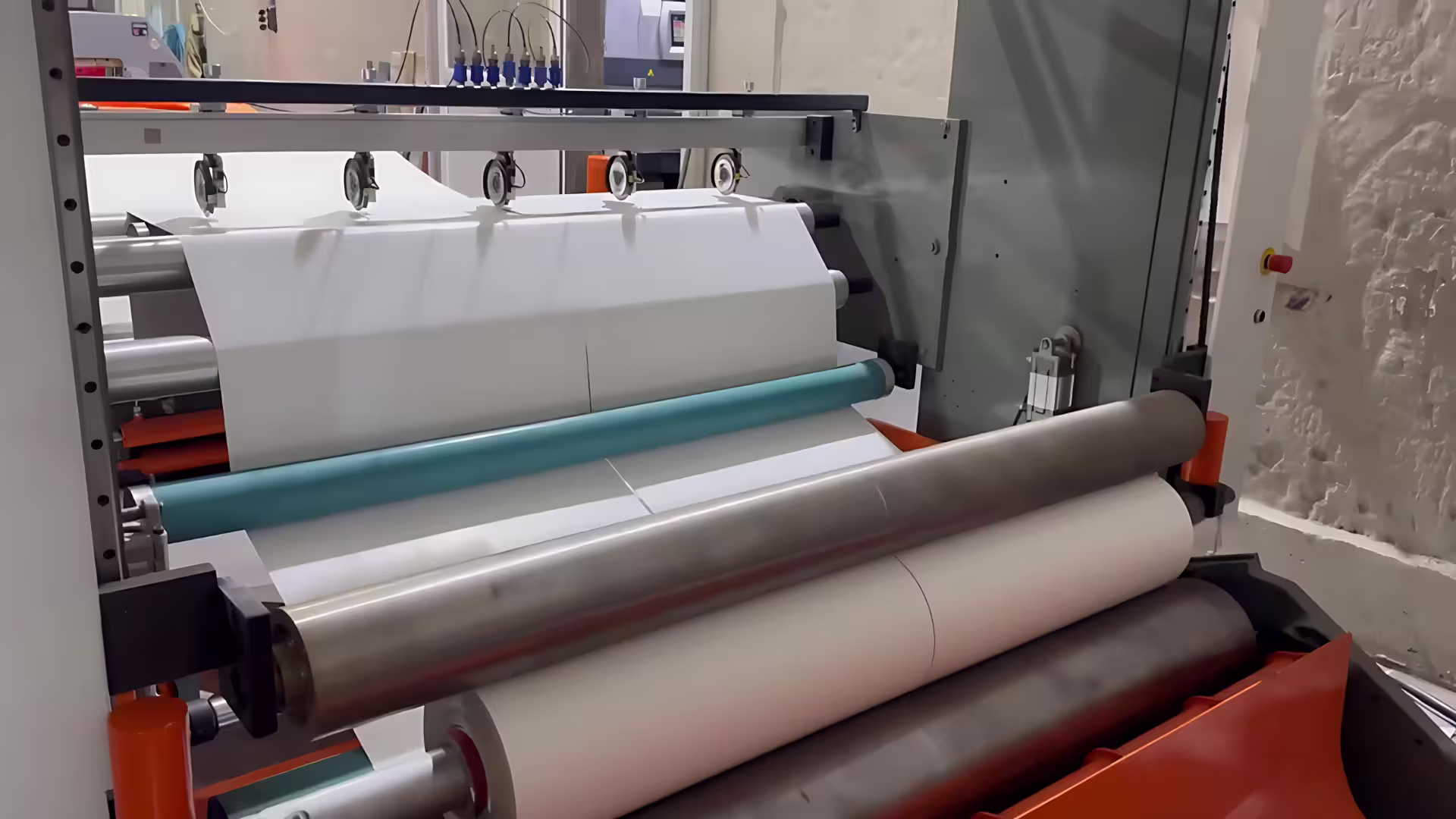

  • Pneumatic Pulling Roller

    The pneumatic roller, which can be moved up and down, covered with rubber, ensures easy placement of the paper into the machine. The pressure applied by the roller to pull the paper is controlled through pressure adjustment, ensuring the same tension across the entire printing surface. This prevents tearing and achieves optimal traction.

    Pneumatic pulling roller

  • User-friendly Computerized Motion Control with Touchscreen Control Panel

    Optimize your paper sheeting with our automatic squaring system, which adjusts automatically when the sheet length changes. This advanced system ensures precise alignment, reduces waste, and perfectly squared corners, all while maintaining accurate dimensions for various sheet sizes.

    User-friendly computerized motion control with touchscreen control panel

  • Cones [Core Chucks]

    It offers superior performance with various sizes ranging from 3" to 12". The cones, equipped for a large surface area and efficient torque transfer, minimize damage to the cardboard cores and open crushed cardboard cores smoothly.

    Cones [core chucks]

Options

Technical Specifications

  • Technical Specifications

    Models

    Unwind Roll Dimensions

    Roll Width[max.]
    1300 mm
    Roll Width[min.]
    300 mm
    Roll Diameter[max.]
    Ø1600 mmØ2000 mm [optional]
    Roll Density[min.]
    40 gsm [g/m²]
    Roll Density[max.]
    500 gsm [g/m²]
    Roll Weight[max.]
    3000 kg

    Rewind Roll Dimensions

    Roll Width[min.]
    100 mm
    Roll Diameter[max.]
    1400 mm

    Size and Weight

    Model:1350
    Length
    11 m
    Width
    3 m
    Height
    2.4 m
    Weight
    8.5 t
