Paper Sheeter MachineTwo Rolls

Astrocut II - Paper Sheeter Machine is a high-performance solution developed to cut paper rolls with high-precision in the printing, packaging, and paper converting industries. It efficiently processes a variety of paper types and sizes, delivering high-quality results for businesses. Designed for paper sheeting from two rolls simultaneously.
  • Feather icon for high speedHigh Speed
  • Ruler icon for precision cuttingPrecision Cutting
  • Science icon for smart automationSmart Automation

Industries Served

  • Printing Industry

    Ideal for sheet-fed printing presses, where precise paper sizes are essential for high-quality prints.

  • Packaging Industry

    Used to cut paper, cardboard, or other materials into specific sizes for packaging boxes or protective wraps.

  • Paper Converting

    Ideal for paper converters who require precise cutting of paper into specific dimensions for subsequent processing or production stages.

Key Features

  • Speed

    300 m/min.

  • Cutting Precision

    ± 0.25 mm

  • Multilingual Touchscreen Display

    EN DE TR RU

  • Automatic Hydraulic Shaftless Unwind Stand

    The unwind stand is equipped with an advanced hydraulic lifting system that ensures smooth and easy roll lifting and loading. The hydraulic mechanism offers precise control over roll positioning, minimizing manual labor.

    Automatic hydraulic shaftless unwind stand

  • Pneumatic Air-Cooled Brakes

    It uses compressed air to activate and deactivate the braking system in synchronization with the automatic tensioning system, regulating the pressure for smooth deceleration. The air-cooled design prevents overheating during prolonged use, ensuring consistent performance and long lifespan.

    Pneumatic air-cooled brakes

  • Twin Servo Drives and Twin Servo Motors

    Equipped with twin servo drives and twin servo motors to ensure maximum precision, synchronization, and high-speed operation across all critical components of the paper sheeting process.

    Twin servo drives and twin servo motors
    Twin servo drives and twin servo motors

  • Automatic Tension Control

    Our Automatic Tension Control system works seamlessly with the brake system to maintain consistent tension during the paper sheeting process. This ensures precise cutting, reduces waste, and boosts productivity by improving overall efficiency and quality in each operation.

    Automatic tension control

  • Pneumatic Pulling Roller

    The pneumatic roller, which can be moved up and down, covered with rubber, ensures easy placement of the paper into the machine. The pressure applied by the roller to pull the paper is controlled through pressure adjustment, ensuring the same tension across the entire printing surface. This prevents tearing and achieves optimal traction.

    Pneumatic pulling roller

  • Paper and Cardboard Decurling Unit

    A decurling unit in a paper sheeter machine refers to a mechanism that removes the natural curl or curl tension that paper tends to develop after being produced on a paper machine. This is important to ensure the paper feeds smoothly and accurately into the sheeter for cutting into sheets of the desired size.

    Paper and cardboard decurling unit

  • User-friendly Computerized Motion Control with Touchscreen Control Panel

    Optimize your paper sheeting with our automatic squaring system, which adjusts automatically when the sheet length changes. This advanced system ensures precise alignment, reduces waste, and perfectly squared corners, all while maintaining accurate dimensions for various sheet sizes.

    User-friendly computerized motion control with touchscreen control panel

  • Automatic Squaring System

    Achieve precise cuts with consistent accuracy, ensuring every sheet has perfectly squared corners. This innovative solution guarantees optimal alignment and quality, reducing waste and improving efficiency in your paper cutting processes. Enhance production and streamline operations effortlessly.

    Automatic squaring system

  • Adjustable Stacker Unit and Band Conveyor Unit

    It is equipped with an adjustable stacking unit and a belt conveyor system for efficient paper collection operations. The stacking unit can be easily adjusted for different paper sizes, while the belt conveyor system ensures smooth and consistent transfer, enhancing workflow and productivity.

    Adjustable stacker unit and band conveyor unit

  • Sheet Counting Sensor and Sheet Stacking with Vibration

    It accurately counts the sheets and efficiently stacks them. The system automatically moves the lift up and down according to the sheet stack using a photocell. Proper collection is ensured with vibration motors on each sides.

    Sheet counting sensor and sheet stacking with vibration

  • Cones [Core Chucks]

    It offers superior performance with various sizes ranging from 3" to 12". The cones, equipped for a large surface area and efficient torque transfer, minimize damage to the cardboard cores and open crushed cardboard cores smoothly.

    Cones [core chucks]

Options

Technical Specifications

  • Technical Specifications

    Models

    Roll Dimensions

    Roll Width[max.]
    1050 mm
    Roll Width[min.]
    300 mm
    Roll Diameter[max.]
    Ø1600 mmØ2000 mm [optional]
    Roll Density[min.]
    40 gsm [g/m²]
    Roll Density[max.]
    500 gsm [g/m²]
    Roll Weight[max.]
    3000 kg

    Sheet Dimensions

    Sheet Length[max.]
    1500 mm
    Sheet Length[min.]
    400 mm

    Stack Dimensions

    Pile Height[max.]
    1400 mm[incl. pallet]

    Size and Weight

    Model:1100
    Length
    11 m
    Width
    3 m
    Height
    2.4 m
    Weight
    8.5 t

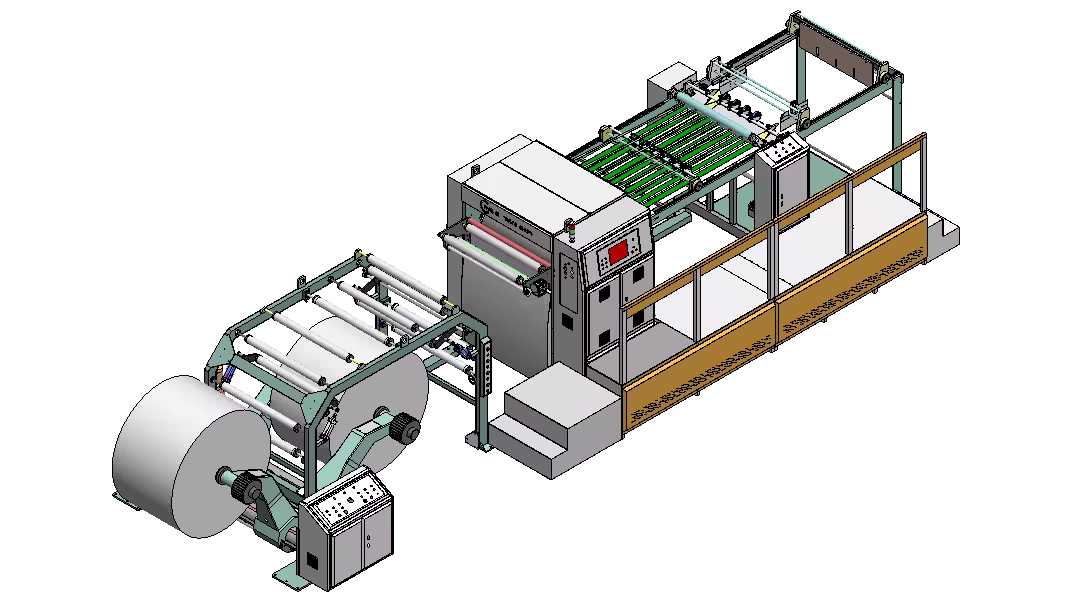

    3D view of two rolls paper sheeter machine component
